The Easy Camper, Timeout Camper, and Timeout Deluxe pop-up style camping trailers are motorcycle towable camping trailers that are designed to be pulled by your motorcycle or small car. All trailiers now use a 5 wire flat plug that will plug into a standard flat automotive style trailer connection. All three models have a small profile while you are pulling them, but when set up, provide you with a spacious camper for two people. If that isn't enough room, you can attach the optional screen room for an additional 72 square feet.
Additional Wiring Information: All Timeout Campers And The Motorcycle Towable Cargo Trailers shown on our web site designed to be towed by motorcycles are currently wired using a 5 wire flat plug. Motorcycles have a separate wire for the turn signals (unlike on cars), so the trailers have a 5 wire wiring harness.
Any of the trailers on the website that have a single light module on each side, can easily be connected to a standard automotive 4 wire plug (just plug the ends together, one wire just won't connect). All the functions will work when towing the trailer with a car on these trailers (cargo trailers shown with just one light module (red) on each side).
The information above does not apply however, to the Timeout camper trailers (Timeout, Timeout Deluxe, And Easy Camper models) with two sets of light assemblies on each side (both amber and red), nor does it apply to the Dart and XL cargo trailers with both red and amber light assemblies; for any model that also has an amber turn signal assembly, contact us when ordering if you want to tow these models with a car and we will have it wired correctly for you.
When you purchase a new trailer, you will also receive a 5 wire pigtail with a flat 5 wire plug that you will wire to your motorcycle.
The Easy Camper And Timeout Camper models can be set up in about 3 minutes, and give you a spacious living area that is completely off the ground; the tent doesn't get muddy, and the floor stays dry. The Easy Camper and the Timeout Campers both sleep 2 people. The Easy Camper offers all the time-tested features of the Timeout Camper, including the same sleeping comforts, with a more modest living area and at a lower price.
The larger Timeout model gives you more room in the middle interior section allowing you to attach the optional table, and has the added feature of a hole in the tent to accomodate a 110 volt portable air conditioning unit if you have one. The Timeout Deluxe model is the largest model and gives you even more cargo space (has a 7 inch taller box than the Timeout or Easy Camper, and has a 4 inch wider tent than the Timeout. The Timeout Deluxe model also has 12 inch wheels (Easy Camper And Timeout have 8 inch wheels)). All models give you enough room to stand while dressing. Many options are available including coolers, a screen room, a luggage bag, light bar and other options.
Canadian customers please note: these trailers are also certified for use in Canada, and the inspection fee normally required for a U.S. manufactured trailer is not required.
Construction is steel frame with aluminum side panels
Available colors are white and black
Quick set-up in about 3 minutes
Bed with air mattress stanard, bed dimensions are 54 inches wide x 6.5 ft. long and mattress is 8 inches high when inflated (unit must be inflated with a pump - not included)
16 cubic feet storage capacity under the bed
Enough room to stand while dressing
Tent material is Rib Stop Nylon on the sides (blue colored part of canvas), and tent canvas on the top (the white area) of the tent
Trailer box is available in either white or black
Comes with a wiring harness
1 7/8 inch ball coupler on tongue
Weight is 320 lbs.
Trailer wheel rim diameter is 8 inches
Total length is 104 inches
Box length is 65 inches
Towing height is 31 inches
Hitch/Ball coupler height - height from ground to ball coupler when tongue is level - 12 inches
Width is 43 inches
Cargo volume is 16 cubic feet
Maximum cargo weight capacity is 450 lbs.
Tongue weight is 20 lbs.
These trailers can be pulled behind either a motorcycle or small car. All trailers now use a standard flat style plug that can plug into a standard flat 4 wire automotive style trailer connection. Trailers also come with the wiring harness for the motorcycle which then plugs into the trailer's harness. If you have a Harley Davidson or Honda Goldwing, we suggest the plug-in adapter's in the accessories list which eliminates having to splice into the bike's wiring harness.
Click the link below for current price, and/or to order
Please Note: The Easy Camper And Timeout Camper Have Aluminum Sides Available In Either Black Or White. The Timeout Model comes with a stripe decal standard, in your choice of either red, blue, or gray. Please let us know on your order along with trailer color what color stripe you want.
Please allow 14 business days before shipment on this item
Both the Easy Camper And Timeout Campers ship in a carton on a pallet. The shipping wt. for both is approximately 510 lbs. crated weight. The shipping carton is 72 inches long x 45 inches wide x 36 inches high (top photo). If you order one of the optional cooler packages, then there will be a smaller carton on top of the one shown; the cooler package has shipping dimensions of 42 inches long x 39 inches wide x 18 inches high and weighs 40 lbs.
Please Note: The Easy Camper And Timeout Camper Have Aluminum Sides Available In Either Black Or White. The Timeout Models come with a stripe decal standard, in gray color.
Construction is steel frame with aluminum side panels
Available colors are white and black
Built-in interior storage protects your gear while on the go
Camper sets up easily in about 3 minutes
Large sleep area for two people, with plenty of ventilation
Tent canvas on TIMEOUT MODEL has an adjustable size hole (maximum size is 24 inches wide by 14 inches high), in the side so you can insert an air conditioning unit if you have one, approximate size of airconditioner that will fit is 5200 btu or larger
Comes standard with air mattress, bed dimensions are 54 inches wide x 6.5 ft. long and air mattress is 8 inches high when inflated (requires battery or foot pump - not included)
For wet days, slip in the two plastic windows to keep the rain out
Camper comes with a table and chair and has room in living area in addition to sleeping area
Living area is completely off the ground - the tent doesn't get muddy, and the floor stays dry
The interior's middle is more than six and one half feet tall so you can stand up
Trailer is available in either black or white
Tent material is Rib Stop Nylon on the sides (blue colored part of canvas), and tent canvas on the top (the white area) of the tent
Sleeping platform is wood, camper comes with an air mattress
Trailer comes with wiring harness, and 1 7/8 inch ball coupler
Comes with a portable, adjustable height table that mounts to trailer floor, and with a chair (new style table replaces the map table)
Trailer wheel rim diameter is 8 inches
Trailer weight is 345 lbs.
Hitch/Ball coupler height - height from ground to ball coupler when tongue is level - 12 inches
Total length is 104 inches, box length is 65 inches, width is 43 inches
Towing height is 31 inches
Tongue weight is 20 lbs.
Cargo volume is 16 cubic feet
These trailers can be pulled behind either a motorcycle or small car. All trailers now use a standard flat style plug that can plug into a standard flat 4 wire automotive style trailer connection. Trailers also come with the wiring harness for the motorcycle which then plugs into the trailer's harness. If you have a Harley Davidson or Honda Goldwing, we suggest the plug-in adapter's in the accessories list which eliminates having to splice into the bike's wiring harness.
Maximum cargo weight capacity is 450 lbs.
Timeout Camper Trailer - Click the link below for current price, and/or to order
Please allow 14 business days before shipment on this item
The Timeout Deluxe Camper
The Timeout Deluxe is similar to the Timeout model but has larger 12 inch wheels and an additional 7 cubic feet of cargo space as well as a 4 inch wider canvas (4 inch wider sleeping area)
Standard wheels are 12 inch white painted steel, with chrome and aluminum available as options
Camper is available with white or black aluminum siding (same as Timeout and Easy Camper models), tent material is also the same (blue)
Optional Diamond Plate siding is now available on Easy Camper, Timeout, And Timeout Deluxe models
Tent material is Rib Stop Nylon on the sides (blue colored part of canvas), and tent canvas on the top (the white area) of the tent
The unit comes standard with air mattress, adjustabl table, and one chair
Comes with a portable, adjustable height table that mounts to trailer floor, and with a chair (new style table replaces the map table)
Comes with a gray stripe decal, unless you order the optional diamond plate siding
Trailer comes with 1 7/8 inch ball type coupler on the tongue
Hitch/Ball coupler height - height from ground to ball coupler when tongue is level - 12 inches
Clear plastic windows in the dining area and zippered opening to allow you easy access to the cooler package without stepping outside
Model Timeout Deluxe: Motorcycle towable pop-up type tent camper trailer, wt. 387 lbs., tongue weight is 20 lbs., box length is 65 inches, total length is 104 inches, towing height is 35 inches, box width is 43 inches, total cargo capacity is 23 cubic feet, total load capacity is 360 lbs. - Click below for current price, and/or to order.
Please allow 14 business days before shipment on this item
Both the Easy Camper And Timeout Campers ship in a carton on a pallet. The shipping wt. for both is approximately 510 lbs. crated weight. The shipping carton is 72 inches long x 45 inches wide x 36 inches high (top photo). If you order one of the optional cooler packages, then there will be a smaller carton banded to the top of the main carton shown above. The cooler package carton has shipping dimensions of 42 inches long x 39 inches wide x 18 inches high and weighs 40 lbs.
Please Note: The Easy Camper And Timeout And Timeout Deluxe Campers Have Aluminum Sides Available In Either Black Or White. A gray stripe decal is applied on the Timeout And Timeout Deluxe Models (no decal on the Easy Camper). Please let us know on your order what trailer color you want. Also now available as an option is diamond plate siding (no decal with diamond plating).
Electric Brakes: Electric brake kit for Timeout and Easy Camper Camping Trailers), The electric trailer brakes include the controller, brake componenents and hubs, which are best installed at factory (you can order kit for older trailers as well). You will have to mount and wire controller; includes instructions, you will have to connect the brake controller wiring harness (see information at bottom of this page***), if you have a Harley or Goldwing, the HD and Goldwing Plug-in Kits will make trailer and brake installation easier (see bottom of page)
Click the link below for current price and availability
Brake Parts
Replacement Control Box: Replacement control box for Timeout Electric brake kits - Click the link below for current price and availability
Cooler Package For Timeout And Easy Camper Models: Cooler package attaches to front on tongue of trailer, consists of 25 quart Igloo cooler with molded cooler holder that fits on top of trailer tongue, gives front of trailer a nice aerodynamic look, can be used on either Timeout or Easy Camper models, customer has to install, holes are pre-drilled in trailer frame (holes must be drilled in cooler package by customer to get exact fit, customer must supply the size 10-24 machine screws with flat washers and nuts to attach cooler package). This item is bulky to ship, and goes by truck, best if ordered with a new trailer. -Click the link below for current price, and availability
Cooler Package With Lights For Timeout And Easy Camper Models: Same as above but with running lights built into side of molded cooler holder, can be used on either Timeout or Easy Camper models, customer has to install, holes are pre-drilled in trailer frame (holes must be drilled in cooler package by customer to get exact fit, customer must supply the size 10-24 machine screws with flat washers and nuts to attach cooler package). This item is bulky to ship, and goes by truck, best if ordered with a new trailer. - Click the link below for current price and availability
Cooler Cover Timeout/Easy Camper: This is a naugahyde bag that covers the cooler. The bag has a snap on flap that still gives you access to cooler but hides sides of cooler, so you don't see bungee cords that hold cooler to trailer, and you don't have to pull the cover off completely to get into the cooler
Click the link below for current price and availability

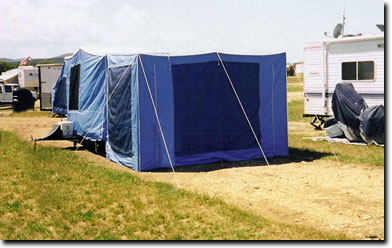

Screen Room: Screen room attaches to end of living space on Timeout and Easy Camper models. Screen room adds 6 ft. to length of living area, and is 12 ft. wide. Screen room does not have floor and is at ground level, wt. is 30 lbs.
Click the link below for current price and availability
L-shaped Awning: L-shaped awning comes out from living space 6 1/2 ft., out from one side of camper 6 1/2 ft. and 12 ft. down the side of the camper, gives you shade on side of camper, made of canvas, comes with adjustable awning poles, weight of canvas awning about 10 lbs., weight of poles 10 lbs. (20 lbs. total)
Click the link below for current price and availability
Awning: Standard type awning, gives you shade on end of camper from living space, wt. approximately 10 lbs.
Click the link below for current price and availability
Replacement Canvasas For Timeout Models
Easy Camper Replacement Canvas: Replacement Canvas for the Easy Camper - Click the link below for current price and availability
Timeout Model Replacement Canvas: Replacement canvas for the Timeout Model - Click the link below for current price and availability
Timeout Deluxe Model Replacement Canvas: Replacement canvas for the Timeout Deluxe Model trailer - Click the link below for current price and availability
Sleeping Cushion With Storage Bag: 2 inch thick foam cushion to lay on sleeping platform if you don't want to use the air mattress which is included standard with the trailers. Cushion includes storage bag and is stored on top of trailer lid during travel
Click the link below for current price and availability
Model STCTB: Spare tire bracket for 8 inch diameter rims (Easy Camper And Timeout) to mount on a 2 inch square trailer tongue
Click the link below for current price and availability
Air Conditioning Stand: THE CANVAS ON THE TIMEOUT MODEL ONLY HAS a hole in the side to accomodate a standard small size portable air conditioner. The A/C stand allows you to hold the airconditioner at the right height for use
Click the link below for current price and availability
Table: Foldable table is height adjustable, optional for Easy Camper (comes standard with Timeout Trailer And Timeout Deluxe)
Click the link below for current price and availability
LED Fiberglass Light Bar: Light bar mounts on back of Timeout And Easy Camper models only, to dress it up and give you added visibility down the road - Click the link below for current price and availability
Optional Wheels And Hubcaps (8 inch fit Easy Camper And Timeout, 12 inch wheels are for Timeout Deluxe)
TODChromeWT: Upgrade to 12 inch chrome wheels from standard white painted steel on the Timeout Deluxe Trailer - Click the link below for current price and availability
TODAluminumWT: Upgrade to 12 inch Aluminum wheels from standard white painted steel on the Timeout Deluxe Trailer -Click the link below for current price and availability
If you have a Timeout Deluxe trailer already, or other trailer with 12 inch diameter rims and want to purchase a set of Chrome Wheel or Aluminum Wheel Assemblies, then click the link below for price and availability. Wheels only come as assemblies (tire mounted on rim).
Model CWA12: Chrome wheel assemblies (set of 2), 12 inch chrome rims with tires mounted, fits Timeout Deluxe camper trailer or other trailers with a 12 inch rim - Click the link below for current price and availability
Model AWA12: Aluminum wheel assemblies (set of 2), 12 inch aluminum rims with tires mounted, fits Timeout Deluxe
camper trailer or other trailers with a 12 inch rim - Click the link below for current price and availability
Spare Tires
8 Inch Spare Tire and Carrier Bracket: 8 inch wheel assembly with standard white painted rim, with carrier (mounting bracket) to bolt spare tire to the tongue of the trailer, for Easy Camper And Timeout Camper models only
Click the link below for current price and availability
8 Inch Spare Tire Only: 8 inch wheel assembly with standard white painted rim (no mounting bracket, you will have to store spare in trailer bed), for Easy Camper And Timeout Camper models only
Click the link below for current price and availability
Model STWC12: 12 inch Spare tire/white painted rim and carrier bracket for use on the Timeout Deluxe model camping trailer, wt. 20 lbs. - Click the link below for current price and availability
Model 12isparewht: 12 inch spare tire only (wheel assembly, tire mounted on 12 inch standard, white painted rim), for Timeout Deluxe model only, wt. 17 lbs. - Click the link below for current price and availability
Baby Moon Hub Cap 8 Inch Wheels Set Of 2: Baby Moon style hubcaps for 8 inch diameter rims, hubcaps are chrome, these require a rim with the raised spots on the inside to hold them in place, price shown is per set of 2 hubcaps.
Click the link below for current price and availability
The Baby Moon Hubcaps on the Timeout And Easy Camper Model Trailers. Hub Caps are not currently available for the 12 inch wheels on the Timeout Deluxe (just the chrome or aluminum wheel upgrade).
Other Options Continued
Swivel Coupler: One end of the coupler bolts on one end of our 2 inch tubing trailer tongue, and the other end of the coupler bolts to the 1 7/8 ball hitch coupler, adding the Swivel Coupler adds 4 inches to the total length of the trailer tongue, the swivel coupler gives you increased lean angle for better cornering with trailer, more lean angle for easier parking if you have a short side stand, and added safety if you lay your bike down (the trailer may stay upright even if bike goes down, and it can save the trailer and possibly reduce bike damage in some accidents)
Click on the link below for current price and availability
Bearing Buddies: Bearing caps that give you an easy way to grease trailer bearings
Click the link below for current price and availability
Tongue Cooler Bracket: For use on trailers without cooler package, rack bolts to tongue and allows you to carry your own cooler
Click the link below for current price and to order, if not ordering with a trailer
Cooler Rack: Cooler rack fits on Timeout Trailers with 2 inch square tongues, rack is 36 inches long X 24 inches wide, wt. 20 lbs., ships by UPS - Click on the link below for current price and availability
Rain Pole Clips: Three clips of each style (black or white) are used on the camping trailers, ship by Post Office - Click the link below for current price and availability
Adapter Plugs
Part No. 5WFBPT: Five wire flat plug pigtail for the bike, this harness comes with the current Timeout Trailers, if your trailer does not have a 5 wire flat plug on the trailer harness, then see below - Click the link below for current price and availability
Part No. 5WFTPT: Fire wire flat plug pigtail to splice into the trailer wiring harness of an old Timeout Camper or similiar trailer, to upgrade the plug/harness to the current plug style, to match with the current 5 wire flat bike pigtail (part no. 5WFBPT) listed above. This is a plug with wiring pigtail - Click the link below for current price and availability
Part No. 5WFBPT5WFTPT: Set of both 5 wire flat pigtails as listed above (5WFBPT and 5WFTPT) if you need both the bike side and trailer side wiring pigtails, then order this set - Click the link below for current price and availability
Part No. 5WAP Adapter Plug: (IMAGE SHOWN NOT EXACT) Adapter plug 5 wire round to 5 wire flat (no wires, just adapter plug), (which then plugs into a 4 wire flat auto plug). This is for Timeout manufactured camper and cargo trailers that used a 5 wire round plug. One side of the plug connects to your trailer's wiring harness, and the other side plugs into a 4 wire flat automotive plug you will need on your car, or it will also plug into the new style bike wiring harness -
Click the link below for current price and availability
Available Wiring Harnesses And Trailer Isolator
Trailer Wiring Harnesses And Trailer Isolator: If you purchase a new trailer from us the trailer will include a wiring harness/pigtail for the bike; as a general rule, wiring harnesses for the bike end do not come with a trailer hitch, but with the trailer. If you have a used trailer, or another brand of trailer that did not come with the wiring pigtail for the bike, then click the link below for price and availability
WHBE: Wiring Pigtail For The Bike. We have available a 5 wire wiring pigtail for the bike which will have either a 5 wire flat plug on the end, or a 5 wire round plug on the end, if this is not what is on your trailer, you can either purchase the pigtail with an additional plug you can put on your trailer harness (5 wire flat or round), or e-mail us a photo if you are not sure what you have. To install this pigtail you will have to splice the 5 wires into the wires coming from the lights on your bike. -
Click the link below for current price and availability
How the trailer plugs are wired for Timeout brand trailers: Pin 1 - Yellow Wire - left turn signal / Pin 2 - Green Wire - right turn signal / Pin 3 - Brown Wire - running lights / Pin 4 - Red Wire/Blue Wire - brake lights / Pin 5 - White Wire - ground
Wiring Harnesses: If you do not want to splice the wiring pigtail directly into the light wires, then we have wiring harnesses that plug into the factory harness on your bike; these harnesses are available for many models of Harley Davidson, Honda Goldwing, and the Yamaha Royal Star Venture. There is also a Universal Wiring Harness kit available. Click the link below for current price and availability
UIKM: Universal Trailer Isolator kit, can be used with some wiring harnesses as listed that have a connector for the isolator (some harnesses are direct connect). The 2014 and newer Harley Davidsons have to use this isolator with a harness, as well as a HD Can Bus module (listed and available). The universal trailer isolator kit prevents any fuses being blown the the motorcycle if any of the wiring shorts out; instead, any short will burn out a fuse in the isolator only. Click the order form button below and look on the order page for the UIKM isolator and the available sub-harnesses in the drop down menu on the page. Depending upon the bike, as listed isolators are for bikes with auxillary lights that have been added to the bike, and this depends upon the year of the bike and the wiring harness; Click the link below for price and availability
UWK: Universal Wiring Kit, this universal wiring harness is used for any bike, expecially older bikes if you have extra accessory lights, such as running lights, then you will need the Universal Isololator Kit (UIKM) and this wiring kit. - Click the link below for current price and availability
SOSRP5W: Set of old style 5 wire round plugs (one for bike end and one for trailer harness) - Click the link below for current price and availability
GWGL1500WH: This is a wiring harness that plugs directly into the wiring harness of your Honda GL1500 Goldwing; use this along with the UIKM isolator kit so you don't have to splice directly into the wiring of your GL1500. If you don't care about splicing into the 5 wires on your bike, then just use the pigtail that comes with your Timeout Trailer and splice the wires; otherwise order this and the isolator. - Click the link below for current price and availability
GWGL1800WH: This is a wiring harness for Honda Goldwings 1800, model years 2011 and older; use this along with the UIKM isolator kit so you don't have to splice directly into the wiring of your GL1800. If you don't care about splicing into the 5 wires on your bike, then just use the pigtail that comes with your Timeout Trailer and splice the wires; otherwise order this and the isolator - Click the link below for current price and availability
GWGL18002012+: This is a wiring harness that allows you to directly plug into the wiring harness on your Goldwing 1800, model years 2012 and later, so you don't have to splice in the 5 wires from the trailer pigtail into your bike wires directly. Also purchase the UIKM Universal Isolator Kit and then press fit and crimp the wires from the bike pigtail you get with the trailer, to the wires on the UIKM isolator kit; and also connect any running lights into the wires on the isolator kit as well. - Click the link below for current price and availability
YRSVWH: Plug-in wiring harness for Yamaha Royal Star and Venture models so you can plug into the wiring harness of the bike without having to splice into the wires on the bike directly; to do this however you need to order both is harness and the UIKM universal isolator - Click the link below for current price and availability
HD9710: Plug-in wiring harness for your 1997 to 2010 Harley Davidson to allow you to plug in directly into the wiring harness of your bike without having to splice into the wires on the bike directly; and this has 5 wires to press onto and crimp to the 5 wires on the bike side plug/pigtail you will get with your new trailer, and/or purchase if you need a bike side wiring harness with a used trailer purchase. This harness is for people that don't have extra running lights on their Harley but want to pull the trailer. If you do need to connect extra running lights to an isolator, then purchase the appropriate plug listed below and an isolator - Click the link below for current price and availability
HDWH97-10: Plug in wiring harness for your 1997 to 2010 Harley Davidson (most models) to allow you to plug in directly into the wiring harness of your bike instead of having to splice into your wires on the lights; use this with the UIKM Universal Isolator Kit to then press together and crimp the wires to the wiring pigtail for the bike side plug - Click the link below for current price and availability
HDWH6PIN11-13: Plug-in wiring harness for 6 pin Molex connectors (make sure bike's connectors have 6 prongs), for Harley 2011-2013 models. This connector is for direct connection to bike side pigtail without any isolator; wires from bike plug pigtail press into the connections on end and then you crimp the wires - Click the link below for current price and availability
HDSH6PWI11-13: Plug-in wiring harness for 6 pin Molex connectors with plug for connecting to UIKM Universal Isolator kit, which will have to be purchased separately, and will be used to connect to bike side plug and pigtail. For Harley Davidson motorcycles with 6 pin Molex connectors, 2011-2013.-Click the link below for current price and availability

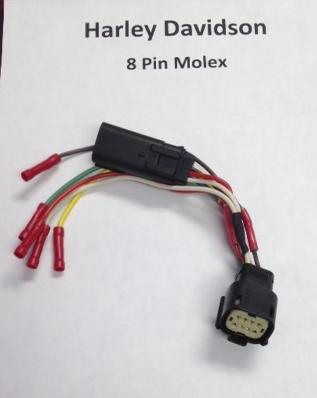

HD11138PIN: Plug-in no isolator wiring harness for Harley Davisons from 2011 to 2013 with an 8 pin Molex connector, and designed for bikes without extra running lights, has 5 wires that slide into the connectors on the end of the bike side pigtail harness, then wires are crimped at the connector -Click the link below for current price and availability
HDSH8PIC11-13: Plug-in connector for Harley Davidson 2011-2013 with 8 pin Molex connector, has plug in to be connected to UIKM Universal Isolator Kit which will then connect to the bike side pigtail wiring harness - Click the link below for current price and availability
UTH: Universal trailer harness kit, use on Harley's, Yamaha's, and other bikes, use to splice into your bikes wiring system - Click the link below for current price and availability

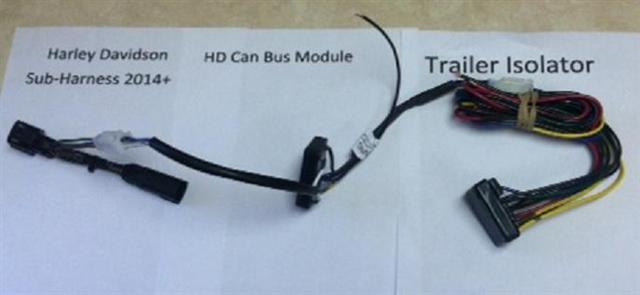

HDWH2014+: Plug-in wiring harness for Harley Davidson motorcycles 2014+ and includes a harness, can-bus modual, and isolator. This plug in kit is for the 2014 and newer bikes and connects to the Can Bus Module which connects to the Isolator. All 3 pieces are necessary to make a 5 wire trailer work properly with the 2014 bikes. (Isolator, Sub Harness and Can Bus Module) - Click the link below for current price and availability
CLICK THE ORDER FORM BUTTON BELOW for current price and availability
Replacement Lights/Lenses
Part No. LEDCMTO: Set of two LED tail light assemblies complete for either the Timeout Campers, or the Cyclemate cargo trailers to convert trailers with bulb lights to LED lights. Lights are available with either all red lenses (order if you will be pulling the trailers with both a car and bike or just a car), or with red tail light/stop light section and amber turn signal section (for use when towing with a motorcycle only). Specify in the drop down menu on the order page what color you want the lenses - Click the link below for current price and availability
Part No. LEDMMTO-1: One LED Light pod to replace broken LED light, purchase either red or amber (see drop down menu on order page, (purchase 2 units if converting amber to red so you can tow the trailer with a car; towing these trailers with a car requires all red lights and a 4 wire plug adapter (on older models with 5 wire round plug, new trailers have a flat 5 wire plug that works for both cars and with pig tail for bikes that was included with trailer)), does NOT include chrome trim ring - Click the link below for current price and availability
Part No. 90742: Tail light lense only, for old style bulb type lights on Timeout (new lights since 2008 are LED), available in red or amber - Click the link below for current price and availability
Accessories/Options Photos
Hint: If you lose the instructions and don't know how to wire the pig tail on the bike, on a new trailer, the wires are as follows: Pin 1 yellow wire - left turn signal; Pin 2 green wire - right turn signal; Pin 3 brown wire - running lights; pin 4 red wire - brake lights; pin 5 white wire - ground. If the unit is used and the lights don't work after you have wired the pig tail that goes on the bike, then pull both plugs apart and make sure both sets of wires match on each end.
Oblong Tail Lights: optional oblong LED tail light including trim , purchase as a replacement for the standard tail lights on any of the cargo trailers on our site or for your own trailer, oblong tailights give your trailer a unique look
Click the link below for current price and availability
RRSS: chrome roof rack for Slipstream Trailer lets you haul even more cargo, strap on excess cargo or suite cases on top of trailer, roof rack is 23 inches wide x 26 inches long
Click the link below for current price and availability
Slipstream Cover: Nylon stretch cover for Slipstream trailer only, covers trailer completely including the cooler package (if you have that option) - Click the link below for current price and availability
Cooler Cover: Heavy Naugahyde cover to dress up and improve efficiency of the open coolers (the cooler packages other than on the Dart And XLs)
Click the link below for current price and availability
Single Color Match: will match one paint color for trailer color - Click the link below for current price and availability
Double Color Match: will match two paint colors for trailer color - Click the link below for current price and availability
Slipstream And Aerodyne Chrome Trim Option: chrome trim around box lid - Click the link below for current price and availability
Please note: While the cargo trailers are priced without the trim package option that goes on the edge of the lid, box edge and the fenders, this is really a necessity as the fiberglass edge on the lid is rough looking without this.
Other Options - All Options Are Plus UPS Shipping
Hitches: Hitches are available for most popular Japanese Bikes, BMW, and Harley Davidson. See our list by clicking on the link for Motorcycle Hitches in the Motorcycle Index, or click on this link - Click Here For Motorcycle Hitches
Swivel Coupler: One end of the coupler bolts on one end of our 2 inch tubing trailer tongue, and the other end of the coupler bolts to the 1 7/8 ball hitch coupler, adding the Swivel Coupler adds 4 inches to the total length of the trailer tongue, the swivel coupler gives you increased lean angle for better cornering with trailer, more lean angle for easier parking if you have a short side stand, and added safety if you lay your bike down (the trailer may stay upright even if bike goes down, and it can save the trailer and possibly reduce bike damage in some accidents)
Click the link below for current price and availability
Spare Tire And Carrier (For Aerodyne and Slipstream only): Optional spare tire, (mounted on 10 inch standard white painted rim) and carrier to bolt tire to trailer, bolts spare tire to bottom side of tonque on Aerodyne and Slipstream models. Can only be used if don't have the cooler package mounted. If you have the cooler package, then just order the spare tire without carrier listed below (also for Dart)
Click the link below for current price and availability
Spare Tire Only (For Aerodyne And Slipstream Only): Optional spare tire, (mounted on 10 inch standard white painted steel rim), does not include carrier bracket, order for trailers with a cooler package as you do not have room to bolt the spare tire to the tongue when using the cooler package
Click the link below for current price and availability
Bearing Buddies: bearing covers with grease zerk on end, easy way to grease trailer bearings
Click the link below for current price and availability
Additional Information
***Wiring Harness Information For Electric Brake Kits For Timeout Trailers.
1. The electric brake controller will have to be mounted onto either the bike or the trailer. The controller needs to be kept dry and covered.
2. The controller has a 4 wire flat plug on the unit. It also comes with a wiring harness with a female end to plug into the controller and 4 wires on the other end.
3. Only 3 of the wires will be used. You will connect the 5 amp fused hot wire to the battery, the negative ground to the bike, and the brake light wire to the brake light on the bike.
4. If you have purchased either the Harley Davidson or Goldwing Wiring harness accessory (so you can plug into the wiring harness of the bike without having to splice into the wires of the bike’s harness, you will slice into the wires of this accessory), then when you are connecting the bike pigtail to the wires on this accessory plug you can also connect the wires from the brake controller into these wires.
5. The hot wire for the brake controller still has to connect to the positive on the battery, but the ground and the brake light wire can splice into the wires on the accessory. You will only use three wires on the harness from the brake controller (again – ground, power, and brake light).
6. If you did not purchase the two available wiring harness kits, then both the pig tail for the trailer that connects to the bike, and the pigtail for the brake controller will have to be spliced directly into the appropriate wires on the bike.
Instructions are included with all components; if you have questions, e-mail us at – sales@wikco.com
Wikco.Com is a national equipment dealer selling directly to the end user
To Order: Click On The Order Form Button Directly Below For Ordering And Payment Information
If Our Index Does not Appear On The Left Side Of This Page Then Click On The Home Button Above To See The Many Other Products We Sell
For Sales or Technical Questions, Parts Information, Or To Check On An Order Please E-Mail us at: wikcocom@msn.com
All information is on our web site at: www.wikco.com
If you have additional questions,
