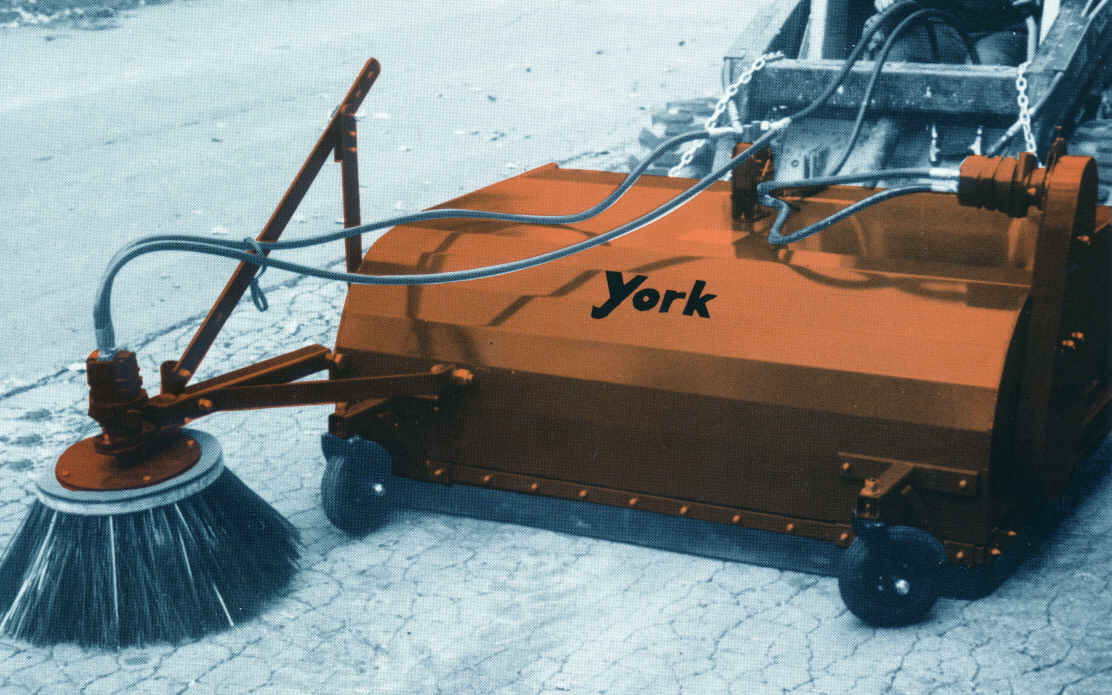

Model SSPU York Skid Steer Loader Mounted Sweeper

The Model SSPU York Sweeper mounts on your skid steer loader or tractor loader using the universal skid steer loader quick attach standard. The unit has its own integrated dirt/debris container that is part of the unit and attaches the sweeper to the loader arms just like your bucket does. The model SSPU is hydraulically powered, and has an optional gutter brush available. The model SSPU is available either 5 ft. or 6 ft. wide.

Click Here To Expand This To A Full Page Version

To See Other Products - Click Here To Go To Our Index

York Model SSPU Loader Mounted Sweeper

  • Features/Specifications


  • Features - Model SSPU Skid Steer Loader Mounted Sweeper


  • Hydraulic drive is standard, equipped with a gerotor type hydraulic motor for smooth, reliable performance, York provides hydraulic hoses to the mounting frame


  • Caster wheels are standard, used to assist the broom in following ground contours


  • Optional gutter brush is available, allows the sweeper to brush up against curbs and in tight spots, the gutter brush may be mounted on either leading edge of the broom


  • An optional flow control is also available to control the speed of the gutter brush for loaders that have hydraulic flows exceeding 25 gpm, this is a needed accessory if the hydraulic flow is above 25 gpm, otherwise gutter brush will spin too fast.


  • Features/Specifications - Model SSPU York Broom


  • Drive: Gerotor type hydraulic motor


  • Hydraulic Requirements: 12-25 gpm, 1800-2250 PSI, 180 degrees F maximum allowable oil temperature (oil cooler may be required)


  • Frame: mounts to skid steer quick attachment systems, proper mounting plate provided, specify Skid Steer make and model when ordering, frame is electrically welded steel


  • Sweeper has integrated dirt container, that swings open and dumps when you lift the unit up and tilt it


  • Caster wheels are standard


  • Broom: 5 ft. or 6 ft. widths available, uses 24" diameter brush sections, 5 ft. model has 34 sections, 6 ft. model has 39 sections, polypropylene convoluted brush sections are standard, crimped wire or a 50/50 combination can be supplied at no additional cost, broom section is adjustable up and down to accommodate wear


  • Prices


  • Model 009405: Model SSPU skid steer mounted sweeper, 5 ft. pick-up broom, hydraulic drive, wt. 900 lbs. -Click the link below for current price, and/or to order


    • Order Form

  • Model 009406: Model SSPU skid steer mounted sweeper, 6 ft. pick-up broom, hydraulic drive, wt. 1050 lbs. - Click the link below for current price, and/or to order


    • Order Form

  • Accessories


  • Model 0000960: Reversible gutter brush, wt. 103 lbs. - Click the link below to order these separately


    • Order Form

  • Model 000965: Hydraulic flow control valve, wt. 23 lbs., required when ordering gutter brush. The gutter brush will spin too fast unless you use this valve to reduce flow, and to reduce rpm's of gutter brush - Click the link below for current price and availability


    • Order Form

  • Note: Specify skid steer make and model when ordering


  • Note: Specify polypropylene, crimped wire, or 50/50 combination when ordering


  • Note: Units are crated, 5 ft. crate weighs 200 lbs., 6 ft. crate weights 225 lbs.


    • REPLACEMENT BRUSH SETS


  • 6 3/8 INCH X 24 INCH DIAMETER FLAT BRUSH SECTIONS FOR SSPU SWEEPER


  • 5 FT. BROOMS


  • Model 09992750: 5 ft. wide, 24 inch diameter all poly brush set with 35 brush sections and 33 wafer spacers - Click the link below for current price and availability


    • Order Form

  • Model 09992850: 5 ft. wide, 24 inch diameter all wire brush set with 35 brush sections and 33 wafer spacers - Click the link below for current price and availability


    • Order Form

  • Model 09992950: 5 ft. wide, 24 inch diameter 1/2 poly, 1/2 wire brush set with 18 flat poly brush sections and 17 flat wire brush sections and 33 wafer spacers - Click the link below for current price and availability


    • Order Form

  • 6 FT. BROOMS


  • Model 09992760: 6 ft. wide, 24 inch diameter all poly brush set with 41 poly brush sections and 38 wafer spacers - Click the link below for current price and availability


    • Order Form

  • Model 09992860: 6 ft. wide, 24 inch diameter all wire brush set with 41 wire brush sections and 38 wafer spacers - Click the link below for current price and availability


    • Order Form

  • Model 09992960: 6 ft. wide, 24 inch diameter 1/2 poly, 1/2 wire brush set with 24 flat poly brush sections and 24 flat wire brush sections and 38 flat wafer spacers - Click the link below for current price and availability


    • Order Form

    SSPU Skid Steer Sweeper - Uses Bucket As Container
