Model FLB York Front Mount Tractor Loader Mounted Sweeper

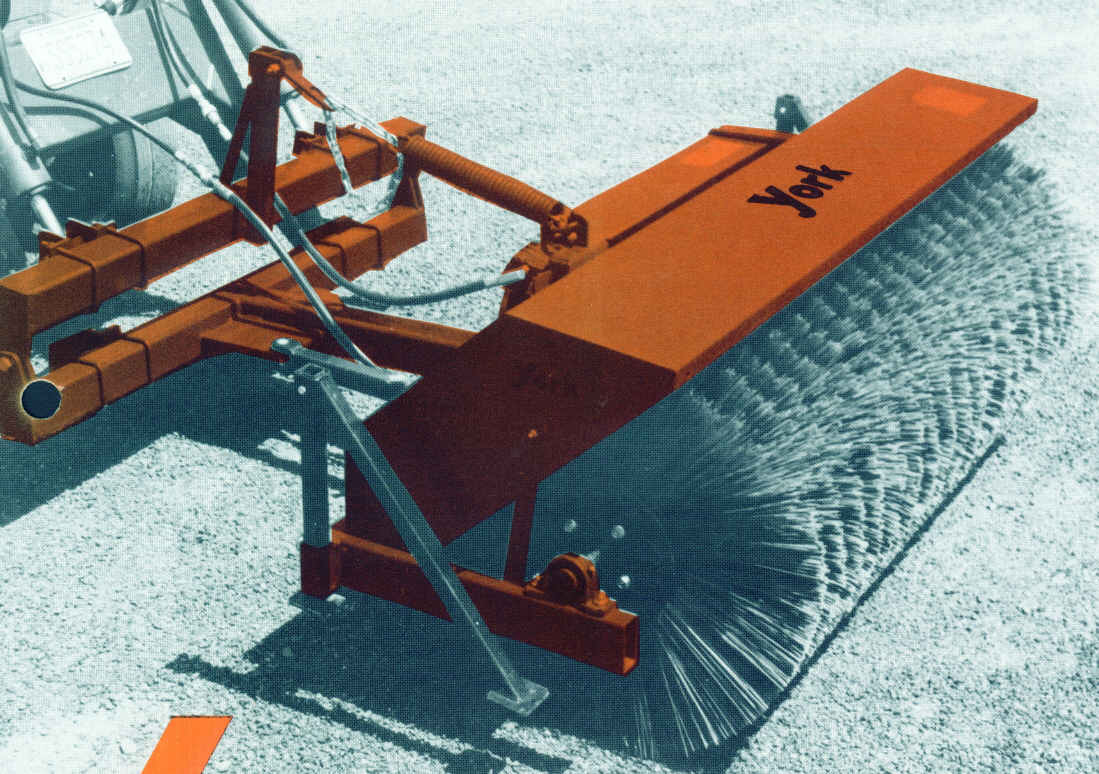

Model FLB is a hydraulically driven sweeper designed to mount on your tractor's loader arms. This broom is perfect for heavy clean up jobs at construction sites, factories and farms to sweep up heavy debris, leaves, or for snow removal.
- Features/Specifications
- Features/Specifications Model FLB Sweeper
- Mounts to loader arms of most tractors, universal/adjustable mounting points for mounting to most loader arms, drilling may be required
- Hydraulic Drive is standard, model FLB32 is equipped with a gerotor type hydraulic motor for smooth, reliable performance.
- Angling is standard, is equipped with a manual angle adjustment which allows a maximum angle of 30 degrees left or right. The model FLB32 is also designed to accept a standard 10" stroke cylinder to convert the unit to hydraulic angle.
- Storage stands are optional - to protect the broom during maintenance and storage, the FLB32 can be equipped with single point raise/lower stands on each side of the unit
- Dirt and debris deflectors are available and optional (see below)
- Caster wheels are optional - to assist the broom in following ground contours the model FLB32 can be equipped with height adjustable caster wheels as optional equipment
- Drive: Gerotor type hydraulic motor
- Hydraulic requirements: 12-25 gpm, 1800-2250 psi, 180 degrees maximum allowable oil temperature (oil cooler may be necessary)
- Frame: Mounts in place of bucket on most front loader models, electrically welded steel, angles manually left or right to a maximum of 30 degrees, can be converted to hydraulic operation using a 10" stroke cylinder, storage/maintenance stands are optional, caster wheels are optional
- Floatation: Broom floats on an adjustable spring chain assembly
- Broom: 6 ft., or 7 ft., or 8 ft. wide by 32 inches in diameter, minimum working width 8 ft. -85", 7 ft. - 75", 6 ft. - 65", other sizes available upon request, number of brush sections -
8 ft. - 48, 7 ft. - 42, 6 ft. - 36, polypropylene convoluted brush sections are standard, crimped wire or a 50/50 combination can be supplied at no additional cost
- Weight- 8 ft. model - 937 lbs., 7 ft. model - 886 lbs., 6 ft. model - 835 lbs.
- Model 009506: Model FLB326 front loader mounted 6 ft. broom, hydraulically driven, wt. 835 lbs. - Click on the link below for current price and availability
- Model 009507: Model FLB327 front loader mounted 7 ft. broom, hydraulically driven, wt. 886 lbs. - Click on the link below for current price and availability
- Model 009508: Model FLB328 front loader mounted 8 ft. broom, hydraulically driven, wt. 937 lbs. - Click on the link below for current price and availability
- Accessories
- When ordering with a new sweeper, order them in the drop down menu on the sweeper's order page.
- Part No. 000290: Caster wheels per pair, wt. 72 lbs. - Click on the link below for current price and availability
- Part No. 000995: Storage stands per pair, wt. 30 lbs. - Click on the link below for current price and availability
- Part No. 000980: FLB hydraulic angle kit (includes cylinders and hoses) - Click on the link below for current price and availability
- Note: Specify polypropylene, crimped wire or 50/50 combination broom when ordering
- Note: Units are crated, crates add the following weight - 6 ft. crate - 200 lbs.,
7 ft. crate - 255 lbs., 8 ft. crate - 255 lbs.
- Note: Dirt deflectors available see below
- 10 INCH X 32 INCH DIAMETER REPLACEMENT BRUSH SECTIONS
- Model 09993060: 6 ft. wide, 32 inch diameter all poly brush set with 36 all poly convoluted brush sections - Click on the link below for current price and availability
- Model 09993160: 6 ft. wide, 32 inch diameter all wire brush set with 36 all wire convoluted brush sections - Click on the link below for current price and availability
- Model 09993260: 6 ft. wide, 32 inch diameter 1/2 poly, 1/2 wire brush set with 19 all poly convoluted brush sections, and 17 all wire convoluted brush sections - Click on the link below for current price and availability
- Model 09993070: 7 ft. wide 32 inch diameter all poly brush set with 42 convoluted brush sections - Click on the link below for current price and availability
- Model 09993170: 7 ft. wide 32 inch diameter all wire brush set with 42 convoluted brush sections - Click on the link below for current price and availability
- Model 09993270: 7 ft. wide 32 inch diameter 1/2 poly, 1/2 wire brush set with 22 convoluted poly brush sections and 20 all wire brush sections - Click on the link below for current price and availability
- Model 09993080: 8 ft. wide 32 inch diameter all poly brush set with 48 all poly convoluted brush sections - Click the link below for current price and availability
- Model 09993180: 8 ft. wide, 32 inch diameter all wire brush set with 48 all wire convoluted brush sections - Click the link below for current price and availability
- Model 09993280: 8 ft. wide, 32 inch diameter 1/2 poly, 1/2 wire brush set with 25 all poly convoluted brush sections, and 23 all wire convoluted brush sections - Click the link below for current price and availability
- Options For York Sweepers
- If ordering accessories with a sweeper, then order them from the drop down menu on that sweepers order page (click the order form button below the sweeper price above). If ordering any of these items separately, then click the order form button directly below the item.
- Optional Deflectors
- Part 000916: Bottom rubber broom deflector 6 ft. wide - Click the link below for current price and availability
- Part 000917: Bottom rubber broom deflector 7 ft. wide - Click the link below for current price and availability
- Part 000918: Bottom rubber broom deflector 8 ft. wide - Click the link below for current price and availability
- Top Metal Deflectors
- Part 000926: Top metal deflector 6 ft. wide - Click the link below for current price and availability
- Part 000927: Top metal deflector 7 ft. wide - Click the link below for current price and availability
- Part 000928: Top metal deflector 8 ft. wide - Click the link below for current price and availability
- Spray System Components
- Model 000930: Spray Tank (you need to order tank and spray system kit below for the system to be complete), 25 gallon capacity - Click the link below for current price and availability
- Spray Systems To Go With Spray Tank Above
- Model 000936: 6 ft. wide spray system, includes pump, hose, nozzles, and mounting hardware (does not include tank, order it separately, see above), wt. is 20 lbs. - Click on the link below for current price and availability
- Model 000937: 7 ft. wide spray system, includes pump, hose, nozzles, and mounting hardware (does not include tank, order it separately, see above), wt. is 23 lbs. - Click the link below for current price and availability
- Model 000938: 8 ft. wide spray system, includes pump, hose, nozzles, and mounting hardware (does not include tank, order it separately, see above), wt. is 26 lbs. - Click the link below for current price and availability
- Note: Kits include: Pump, hose, nozzles and mounting hardware
- Note: Kits do not include tanks
